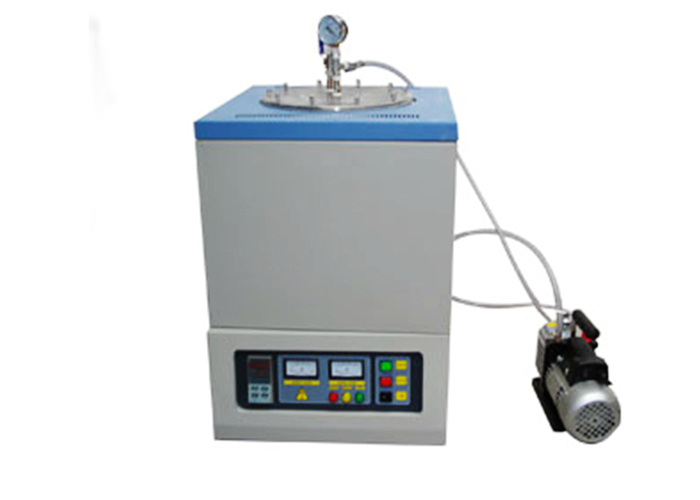

High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top
Loading Vacuum Crucible Furnace
The vacuum system for top loading muffle furnace is optional
(-0.1Mpa)
Brother High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top
Loading Crucible Furnace using polycrystalline mullite fiber lining, and the total thickness
is 120-250mm, to ensure the very good thermal effect. Double layer
of furnace shell with fan cooling, the surface temperature is less
than 60℃. Strength structured furnace roof, to ensure long life to
avoid any collapse from continuous working.
This furnace has big volume, mainly used for production enterprises for the sintering, melting, annealing, etc.
- Type: 1200℃ 1400℃ 1700℃
- Furnace chamber: Top Loading
- Volume: as per your order
- Super heating element. (different type, different heater)
- Excellent Ceramic fiber chamber
- 50 segments programmable and PID auto control
- With over temperature alarm function
- Double layer of furnace shell with fan cooling, the Surface
temperature is less than 60℃
Standard Spares:
- High temperature gloves
- Crucible clip
- Operation Manual
Optional Spares:
- 7-inch touch screen
- Gas vent
- Observation hole
- Software
- Furnace furniture
- Alumina crucible
| Standard Chamber Size |
| Dia240 x H220mm |
| Dia40 x H300mm |
| Dia60 x H300mm |
| Dia80 x H300mm |
| Dia100 x H300mm |
| Dia120 x H300mm |
| Dia150 x H200mm |
Note: Chamber size can be customized
Why Brother's High Temperature Top Loading Muffle Furnace?
Manufacturer with 10+ years' experience
- Best quality
- Customized design
- Experienced workers
- Big factory
Customers from more than 30 countries choose us
- Satisfied customers offer proof of our commitment to excellent
design, quality and cost efficiency.
Best service, Fast response
- Free design for special furnace
- Free technical support for the lifetime
- Free sample test
If you're interested in our High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top
Loading Crucible Furnace, contact us now to get a quote!
