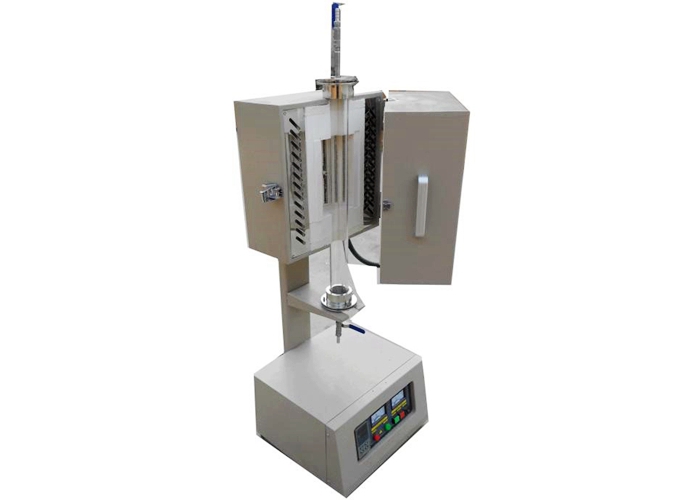

Vertical Tube Furnace

High Temperature Vertical Tube Furnace, 1200℃ 1400℃ 1600℃ Vertical Tube Furnace

According to a different temperature, the furnace tube is high pure quartz or alumina, assembled with vacuum sealing flange. The furnace can heat or quench samples fast under vacuum or flowing inert gas situation. It is an ideal furnace for making quenching tests and temperature measurements.

• Max temperature:
  1200℃ (HRE Fe-Cr-Al-Mo wire)
  1400℃ (SiC Heater)
  1600℃ (MoSi2 Heater)
• 50 segments programmable and auto control
• Furnace structure, double layer steel dual cooling fan, the surface temperature below 50℃
• 304 stainless steel sealing flange
• Adjustable flange support structure at both ends to extend furnace tube life
• Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value
• Safety protection Automatically power off when the furnace body leaks
• Heating rate ≦20℃/min
• Temperature accuracy ±1 ℃
• Max vacuum -0.1MPa
• Configuration molecular pump, Vacuum 7x10^(-4)Pa

Standard Spares:

• Plugging tube 4 pcs
• Furnace tube 1 pc
• Vacuum pump 1 pc
• Vacuum sealing flange 2 sets
• Vacuum gauge 1 pc

Optional Spares:

• Vacuum system (Rotary vane vacuum pump, Diffusion pump, Molecular pump)
• Atmosphere system (Float flow meter, Mass flow meter)
• Quick release flange, Three-way flange
• 7 inch HD touch scree

Standard specification:

Why Us?

Manufacturer with 10+ years' experience

• Best quality
• Customized design
• Experienced workers
• Big factory

Customers from more than 30 countries choose us

• Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

• Free design for special furnace
• Free technical support for the lifetime
• Free sample test

Brother furnace is the leading manufacturer of lab furnace, industrial furnace, heating elements in China. As a manufacturer with more than 17 years’ experience in thermal engineering, Brother Furnace offers the wide and deep range of furnaces worldwide. Satisfied customers in more than 30 countries offer proof of our commitment to excellent design, quality and cost-effectiveness.
